Boron Doped Diamond

Boron doped diamond stands out as an exceptional material for an array of applications. Researchers and practitioners alike find BDD to be a reliable and enduring solution for electrochemical analyses, thanks to its unparalleled properties that extend across various challenging environments.

Send enquiry
Contact Us
Product Description:

Understanding Boron Doped Diamond

Introduction to Boron Doped Diamond Materials

Boron doped diamond BDD is a synthetic diamond material that incorporates boron atoms into its crystal structure. This doping process significantly enhance the physical and electrochemical properties of diamonds, making it a material of great interest in wide range of scientific and industrial application fields, boron doped diamond not only has the unique characteristics of those regular diamond but also has special combination of properties such as wide pontential window, high heat resistance, chemical inertness, exceptional wear and impact resistance, and biocompatibility, these properties make it an important material for technological advancements, extended applications of boron doped diamond ranging from electrochemical sensor for electroanalytical chemistry, and then electrochemical biosensor for biotechnology, to electrode material for electrochemical oxidation of wastewater.

Boron Doped Diamond Material Fabrication As A Service And Solution

Our boron doped diamond material fabrication solution and services mainly covers  the alternative term we use in this industry is doping boron atoms to alter the structures of diamond for different purposes and applications.

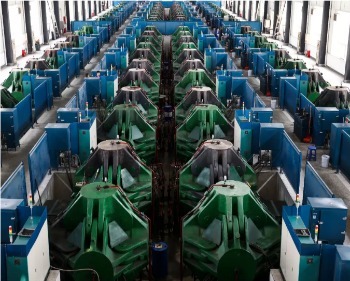

boron doped diamond powder and microns fabrication

Synthesis processes of boron doped diamond microns and grits here at Boromond are accomplished via high pressure and high temperature processes (HPHT) which some carbon sources are crystallized into diamond lattice with integrated boron sources under ultimate pressure and high temperature, after the initial HPHT synthesis processes, post-synthesis treatment such as surface modification, shaping, polishing, and other required processes to optimize boron doped diamond’s properties for specific applications pivot on the purposes of usages.

Structure, Features, Physical and Electrochemical Properties of Boron Doped Diamond

As the versatile component material in various electrochemical applications, boron doped diamond have unique properties such as wide potential window and minimal background currents, and mechanical robustness, mechanical and dimensional stability, and etc. Check the structures, features, physical and electrochemical properties of boron doped diamond we concluded below:

Structure Of Boron Doped Diamond

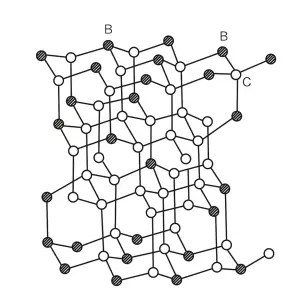

Schematic diagram of boron dopeddiamond atom model
Schematic diagram of boron doped diamond atom model
*B for boron atom, C for carbon atom, and given the truth that the boron and carbon atoms have different atomic radius, the crystal lattice changed, take a closer look at the "holes" in the valence band

Check the atom model within the left section to comprhend the basical structures of boron doped diamond, as you may have noticed, the boron atoms have substituted partial of the carbon atoms to reshape crystal lattice of standard diamond, which making a deformation as boron atom has a moderately larger atomic radius than carbon atom, the carbon atom replacing procedures lead to create “spaces” in the valence band, which allows direct  electron transfer amongst those “spaces”, which eventually make boron doped diamond a p-type semiconductor with improved electrical conductivity, unmatched chemical stability, wide electrochemical potential window, these features and properties allow people to utilize boron doped diamond for implements in different areas.

Features, Properties of Boron Doped Diamond

Electrical conductivity

The presence of boron in diamond endows boron-doped diamond with properties of p-type semiconductor with certain level of electrical conductivity, which is crucial for its use in electronic devices.

Optoelectronic Properties

Boron doped diamond displays notable optoelectronic properties, making it suitable for high performance photoelectric nano devices, especially in high-temperature and high-power applications

Stability and Sensitivity

Boron doped diamond is known for its extreme stability, biocompatibility, and , which are beneficial in electrochemical analysis experiments. Resistance to surface fouling, which make it an ideal material for applications require great wear resistance such as CD/CVD cutting tools, diamond scribing wheels, wear-resistant coatings on different components.

Unmatched Electrochemical Properties

Boron-doped diamond materials got excellent electrochemical properties such as wider electrochemical potential window, lower background currents, chemical stability,and less chance of fouling, great biocompatibility, make them fitable to function in harsh environment, these unmatched properties make them optimal for a vast variety of electrochemical applications, especially in electrochemical sensing and environmental analysis.

Applications of Boron Doped Diamond Powder, Microns And Materials

Boron-doped diamond could effortlessly withstands extreme potentials, corrosive environments, and high temperature and high pressure conditions, not to mention its wide potential window and it’s chemically inert, corrosion resistant, and biocompatibility, making it a formidable choice for various applications, material research and development, scientific and industrial endeavors.

Electronic Component Manufacturing

Boron doped diamond are suitable to prepare electrical and electronic components, to meet industries require high performance, robust stability within harsh environment such as high temperature, high pressure, extreme working conditions.

Ultrahard Tool Manufacturing

Boron doped diamond BDD powder, especially micron-sized particles with fine grain size, are mostly used in specific manufacturing operations, since applications such ultrahard tool manufacturing requires great wear resistance, excellent thermal conductivity, and good electrical conductivity, particularly in machining operation of hard materials like concrete, ceramics, steel, and composite materials, diamond grinding wheels, drilling tool, polishing compounds, cutting tools for micromachining operations.

Optical Transparent Electro Fabrication

Optically transparent electrode with boron doped diamond with high optical transparency were grown on quartz substrates to fabricate offer different optically transparent electrode for applications such as spectroelectrochemical sensing, selectivity and measuring.

Electroanalytical Applications

Boron doped diamond has lower background current and wider potential window than conventional materials, these make it ideal for sensitive electroanalytical measurements, such as trace heavy metal determination and neurotransmitter sensing. fast scanning cyclic voltammetric analyses, trace heavy metal ion detections.

Biotechnology and Health Industry

Boron-doped diamond's biocompatibility makes it suitable for applications in biotechnology and health sectors.

Product Details About Boron Doped Diamond Powder, Grits, And Microns

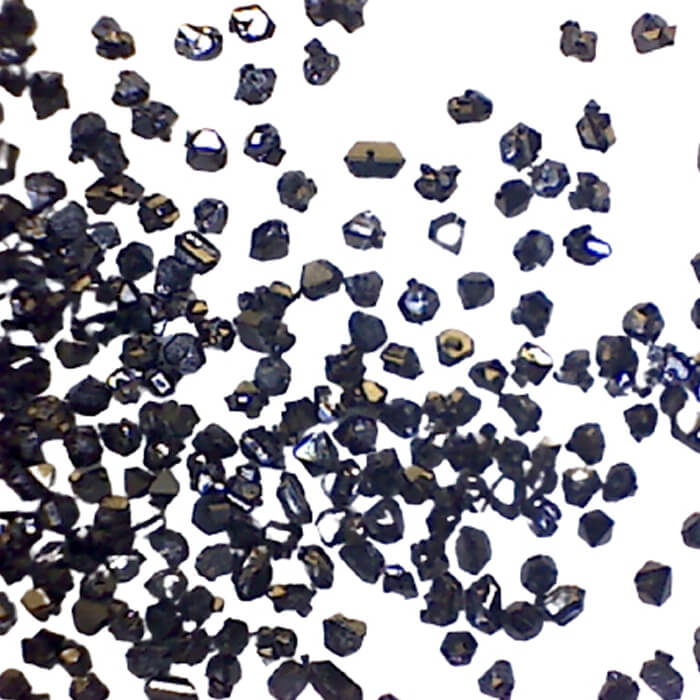

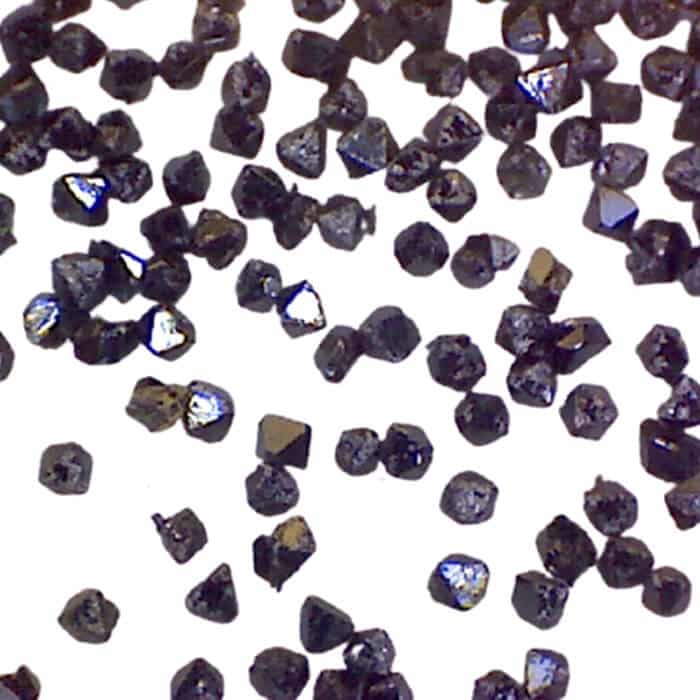

BDD Grits

BRDBDD40
A premium-grade abrasive that has the characteristics of high strength and great thermal stability. Complete crystal shape, most are regular hexahedron and Octahedron shape, Suitable for manufacturing cutting tools, high processing load tools.
BRDBDD30

High performance, more cub-octahedral crystal shape, high strength, and good thermal stability. Apply to high-strength saw cutting and grinding tools.
BRDBDD20

Regular crystal shapes, good anti-heat performance. Applications for grinding tools or medium cutting processing tools.
BRDBDD15

Medium-range, crystal has a more sharp cutting edge and corners,  It’s fit for high processing efficiency grinding and other resin bond tools.
BRDBDD10
Lower strongness, more sharp edges and corners, Suitable for electroplated tools and resin bond tools, for grinding hard and brittle materials, such as ceramics industries too.

Size  Available

  40/45 45/50 50/60 60/70 70/80 80/100 100/120 120/170 170/200 200/400
BRDBDD40 √ √ √ √ √ √ √ √ √
BRDBDD30 √ √ √ √ √ √ √ √ √
BRDBDD20 √ √ √ √ √ √ √ √ √ √
BRDBDD15 √ √ √ √ √ √ √ √ √ √
BRDBDD10 √ √ √ √ √ √ √ √ √ √

BDD micron

BDD micron
  Made from BDD mixed grits, more irregular shape BDD diamond micron powder, suitable for resin bond tools for grinding or electroplated tools for glasses or ceramics materials too; and could applied for Electrode for water treatment or electronics applications.

Electrochemical Oxidation with Boron Dop Diamond Material & Electrodes

bdd electrode

Thanks to the semiconductive, metallic conductive properies via different doping level of boron, boron doped diamond electrodes have been used for various electrochemical applications due to their unique electrochemical properties such widest potential window amongst know electrode materials, lower background current, and what is more, thermal, dimensional and chemical stability in both aqueous and non-aqueous solutions, and high resistance against chemical and electrochemical corrosion, boron doped diamon electrode has been used as a working electrodes in various electrochemical applications such as electro oxidation wastewater treatment, electrochemical analysis, electrochemical synthesis, and bioelectrochemical, and other applications in different industries.

Explore Properties, Characteristics Of Boron Doped Diamond BDD Electrode Plate Now

Any Questions About Boron Doped Diamond Powder?

Share with us the specific questions and potential application ranges, and our consultants will offer their guidance, which may encompass:

Supply boron doped diamond matrerials optimial for cutting performance and surface finish.
Customization availale for different properties and suitability for specific applications.
Employing optioneering techniques to pinpoint the most suitable solution.
