Portable Electro Oxidation Test Kit

Portable electro oxidation test kit is one of the compact electrochemical oxidation testing reactors designed for laboratory scale wastewater treatment, with boron doped diamond BDD anodes and titanium cathodes. Click to download PK2.0 portable electro oxidation test kit brochure

Send enquiry
Contact Us
Product Description:

Introducing Portable Electro Oixdation Test Kit

Your Portable Solution for Advanced Electrochemial Oxidation Wastewater Treatment

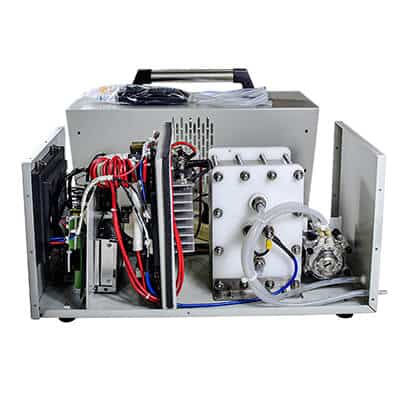

Experience the pinnacle of electrochemical oxidation wastewater treatment technology with the PK2.0 portable electro oxidation test kit, a state-of-the-art portable device designed for precise electrochemical oxidation and degradation testing of challenging wastewater especially organic wastewater.                                                                                                                                                                                                                                                                                  This innovative system is ideal for environmental protection companies and sewage disposal enterprises, catering to conduct on-site treatment of industrial wastewater originate from complicated manufacturing processes such as petrochemical, pharmaceutical, printing, dyeing, and lithium-ion battery manufacturing/recycling.

Key Features of PK2.0 Portable Electro Oxidation Test Kit

Unparalleled Efficiency with Electrochemical Oxidation

At the heart of the PK2.0 electro oxidation test kit lies the BDD electrode module, utilizing silicon-based boron-doped diamond BDD electrode films and titanium electrodes. This advanced electrochemical oxidation process significantly increases the degradation efficiency of refractory organic wastewater, including textile industrial wastewater, lithium-ion battery manufacturing and recycling wastewater, oil and gas wastewater, agrochemical and landfill leachate. The folding flow channel design further optimizes the process by maximizing the contact area between the wastewater and the electrode plate.

Integrated, Robust Structure

Encased in a sheet metal shell, the device boasts a neat and firm structure, ensuring reliability and longevity. The power module includes a comprehensive circuit system, ensuring stable and efficient operation.

Peristaltic Pump & BDD Electrode Module

These core components are designed for precision and durability, handling various organic wastewater types with ease.

Compact and Mobility

With dimensions of 540mm x 300mm x 400mm and a weight of under 27Kg, this equipment is designed for mobility and ease of use in diverse settings.

State-of-the-Art Control System, Extra Features And Advantages Of PK2.0 Portable Electro Oxidation Test Kit

Portable electro oxidation test kit is pre-set to be user friendly as we managed to integrate operation status and real time adjust in one place.                                                                                                                                                                                                                                                                                              Intuitive LCD Display                                                                                                                                                                                                                                          Monitor every aspect of the device’s operation, from flow rates to power output, through a user-friendly interface.

Advanced Touch & Button Operation                                                                                                                                                                                                Navigate through various settings, including voltage, current, motor speed, and more, with a sophisticated touch screen panel.

Specifications of PK2.0 Portable Electro Oxidation Test Kit

Product model: PK2.0

Input voltage: AC220V/50Hz（Voltages and current are customizable）

Work rate: 300W

Ambient temperature: 10~45℃

Pre-fabricated electrode stacks as the core electrochemical reactor within the portable electro oxidation test kit:

Anode: Boron doped diamond electrodes with silicon substrate, dimension at 80*40*3 mm, with a quantity of 10 pieces

Cathode: with 11 pieces of titanium electrodes with dimension at 80*40*1 mm

Machine weight: ≤27Kg

Overall dimension: 540mm*300mm*400mm

Electro Oxidation Products At Different Scales Relevant To PK2.0 Portable Electro Oxidation Test Kit

bdd electrode

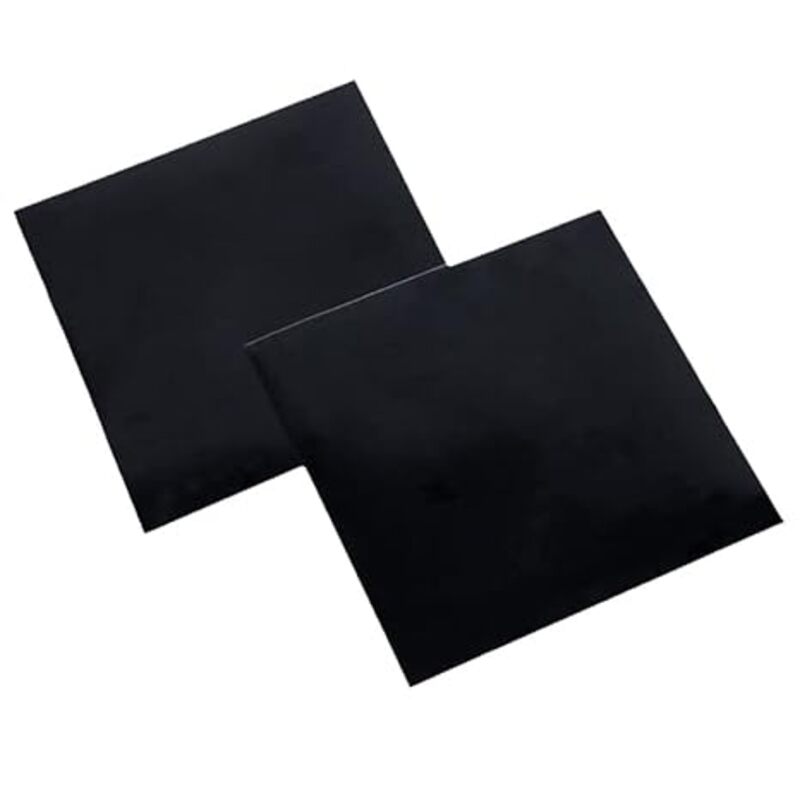

BDD Electrode

Boron-doped diamond BDD electrode, with unmatched chemical stability and conductivity, potential window, a highly desirable material for various applications.

The BDD beaker trial module used for degradation
EO Trial Module

Electro oxidation trial module is designed to conduct treatability and trial scale testing of electrochemical oxidation wastewater treatment technology.

boron doped diamond waste water treatment
EO Pilot Module

Optimal pilot scale electrochemical oxidation wastewater treatment systems and equipments designed based on years of engineering and project.

Explore Our Optimal Electro Oxidation Solutions

Revolutionize Wastewater Treatment

Choose the PK2.0 portable electro oxidation test kit for its exceptional treatment capabilities, user-friendly design, and reliable performance. It's more than just a device; it's a commitment to a cleaner, safer environment.

Addressing Your Concerns

Common operational issues are addressed promptly, with clear troubleshooting guidelines for phenomena such as motor failure, pump inefficiencies, or reaction fluid leakage.

Comprehensive After-Sales Service

We offer free operation and maintenance training, a rapid response time for after-sales service, and a warranty period as per our contract.
